CHSG

Información del Producto

NOTA:
Fluido utilizable: aceite equivalente a ISO-VG-32.
Material del cilindro: cuerpo acero al carbano STKM-13A~C

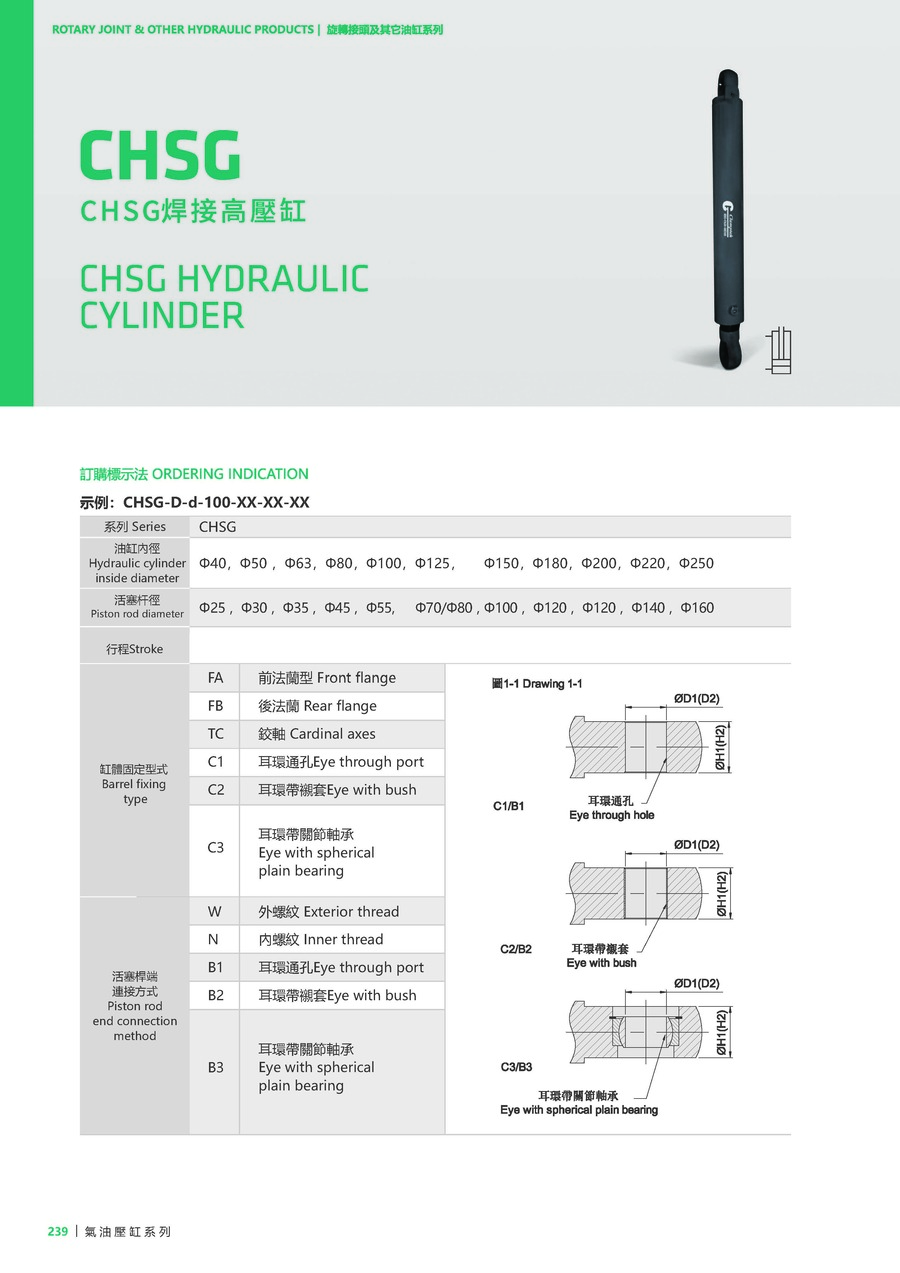

Indicación de Compra

（Ej.CHSG-D-d-100-XX-XX-XX）

CHSG	Serie	CHSG
D	Diámetro Interior	Ø40, Ø50, Ø63, Ø80, Ø100, Ø125, Ø150, Ø180, Ø200, Ø225, Ø250
d	Piston Rod Diameter	Ø25, Ø30, Ø35, Ø45, Ø55, Ø70, Ø80, Ø100, Ø120, Ø140, Ø160
100	Stroke	Refíere los detalles en PDF abajo.
XX	Barrel Fixing Type	FA: Front Flange, FB: Rear Flange, TC: Cardinal Axes, C1: Eye Through Port, C2: Eye with Bush, C3: Eye with Spherical Plain Bearing
XX	Piston Rod End Connection Method	W: Exterior Thread, N: Inner Thread, B1: Eye Through Port, B2: Eye with Bush, B3: Eye with Spherical Plain Bearing
XX	Valve Accessories	Blank: No, CB: With Modular Counter Balance Valve, CO: With Modular Pilot Operated Check Valve

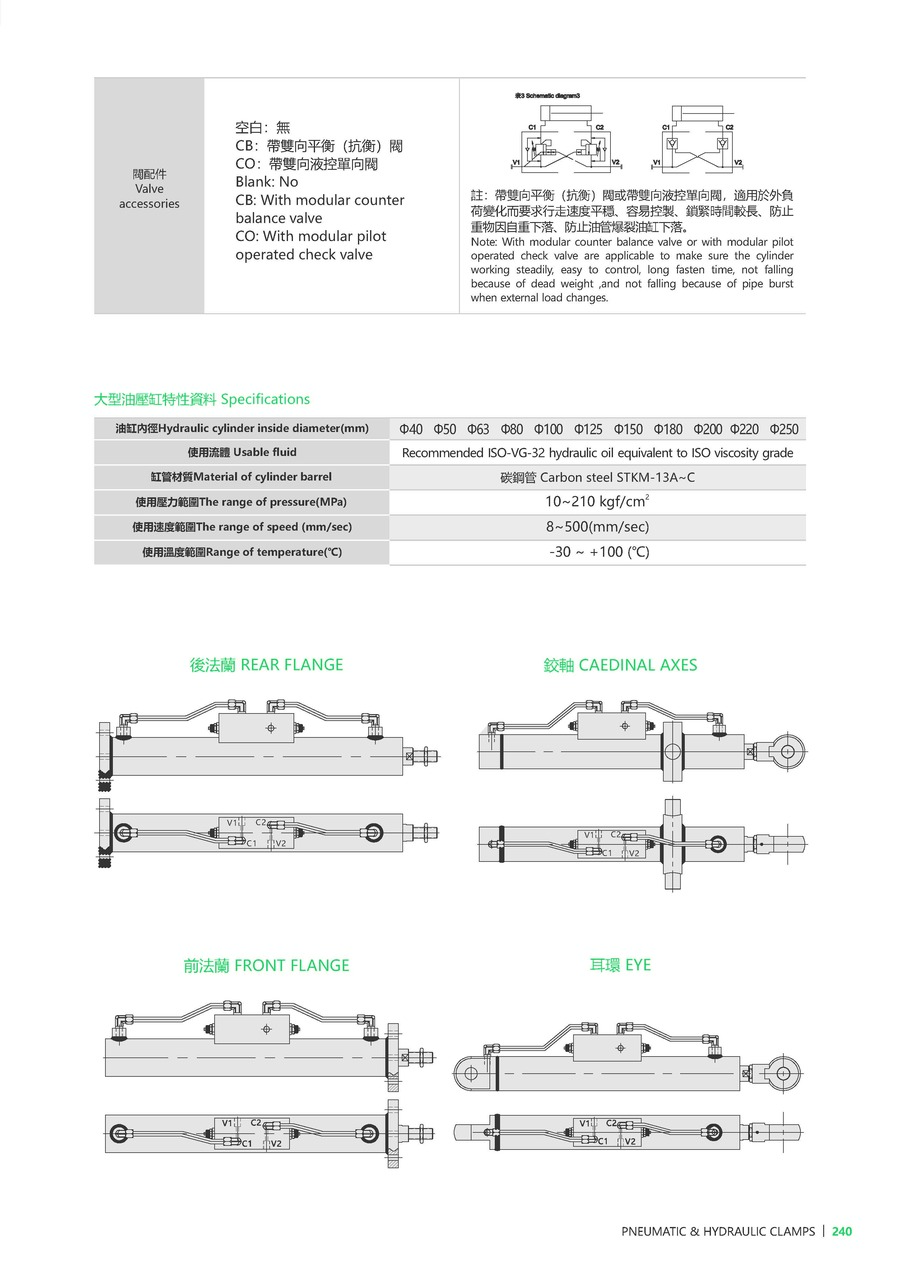

Información del Producto

Modelo	CHSG-40	CHSG-50	CHSG-63	CHSG-80	CHSG-100	CHSG-125	CHSG-150	CHSG-180	CHSG-200	CHSG-220	CHSG-250
Hydraulic Cylinder Inside Diameter(mm)	Ø40	Ø50	Ø63	Ø80	Ø100	Ø125	Ø150	Ø180	Ø200	Ø225	Ø250
The Range of Pressure	10-210kg/cm²	10-210kg/cm²	10-210kg/cm²	10-210kg/cm²	10-210kg/cm²	10-210kg/cm²	10-210kg/cm²	10-210kg/cm²	10-210kg/cm²	10-210kg/cm²	10-210kg/cm²
The Range of Speed(mm/sec)	8-500	8-500	8-500	8-500	8-500	8-500	8-500	8-500	8-500	8-500	8-500
Range of Temperature(°C)	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C
