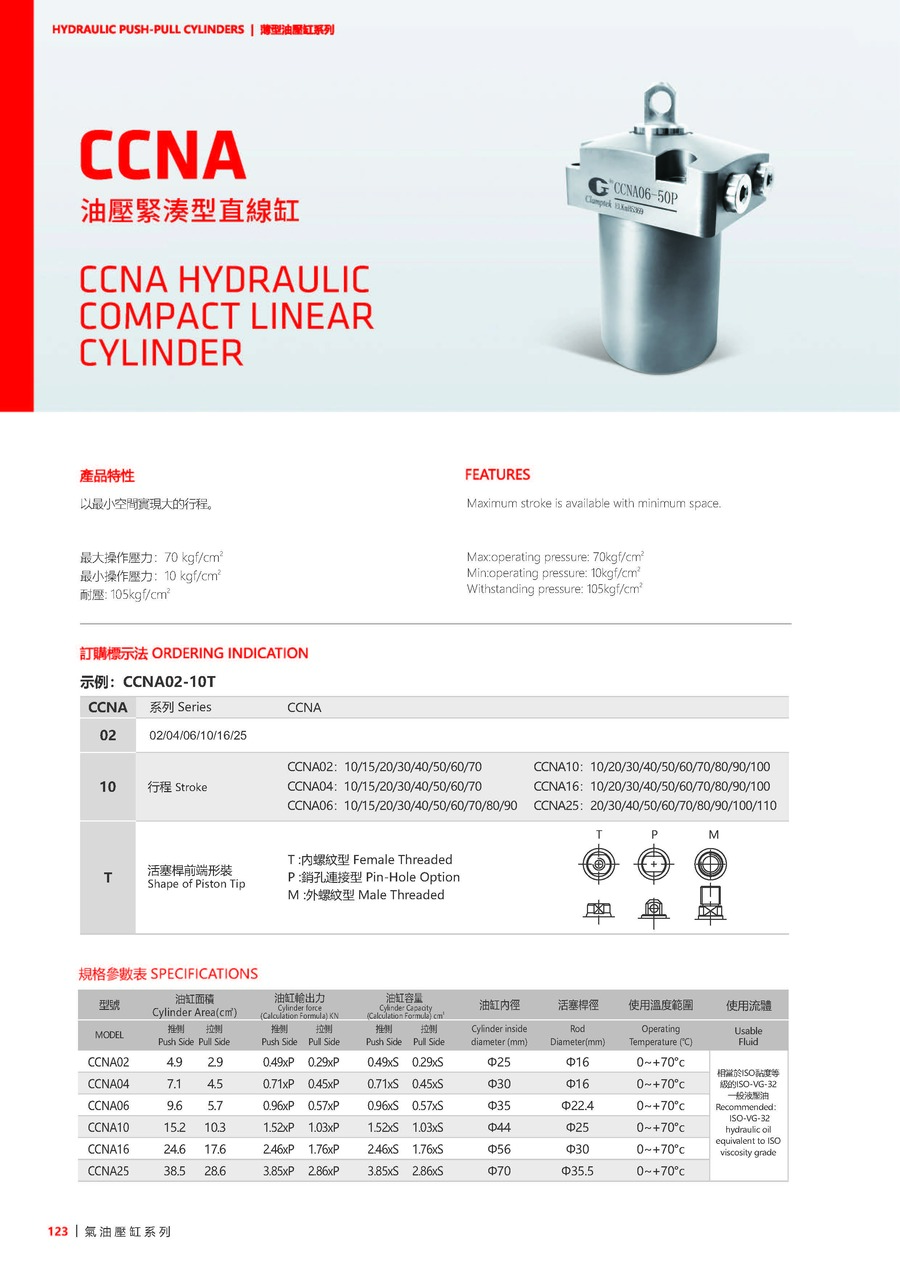

Maximum stroke is available with minimum space.

Max. operating pressure: 70 kgf/cm²
Min. operating pressure: 10 kgf/cm²
Withstanding pressure: 105 kgf/cm²

Usable fluid:
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade.

Indicación de Compra

（Ej.CCNA02-10T）

CCNA	Series	CCNA
02	-	02, 04, 06, 10, 16, 25
10	Stroke	CCNA02: 10, 15, 20, 30, 40, 50, 60, 70 / CCNA04: 10, 15, 20, 30, 40, 50, 60, 70 / CCNA06: 10, 15, 20, 30, 40, 50, 60, 70, 80, 90 / CCNA10: 10, 20, 30, 40, 50, 60, 70, 80, 90, 100 / CCNA16: 10, 20, 30, 40, 50, 60, 70, 80, 90, 100 / CCNA25: 20, 30, 40, 50, 60, 70, 80, 90, 100, 110

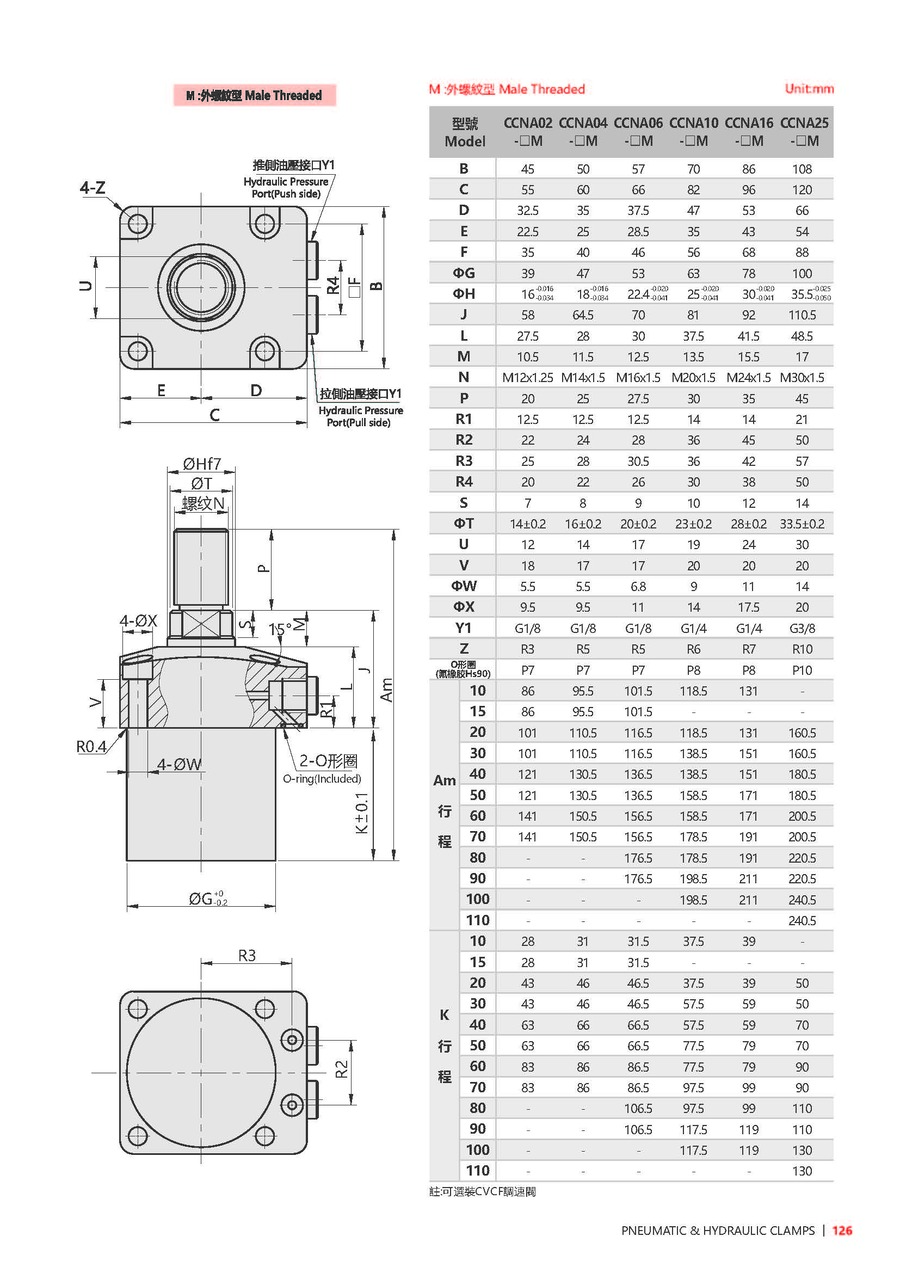

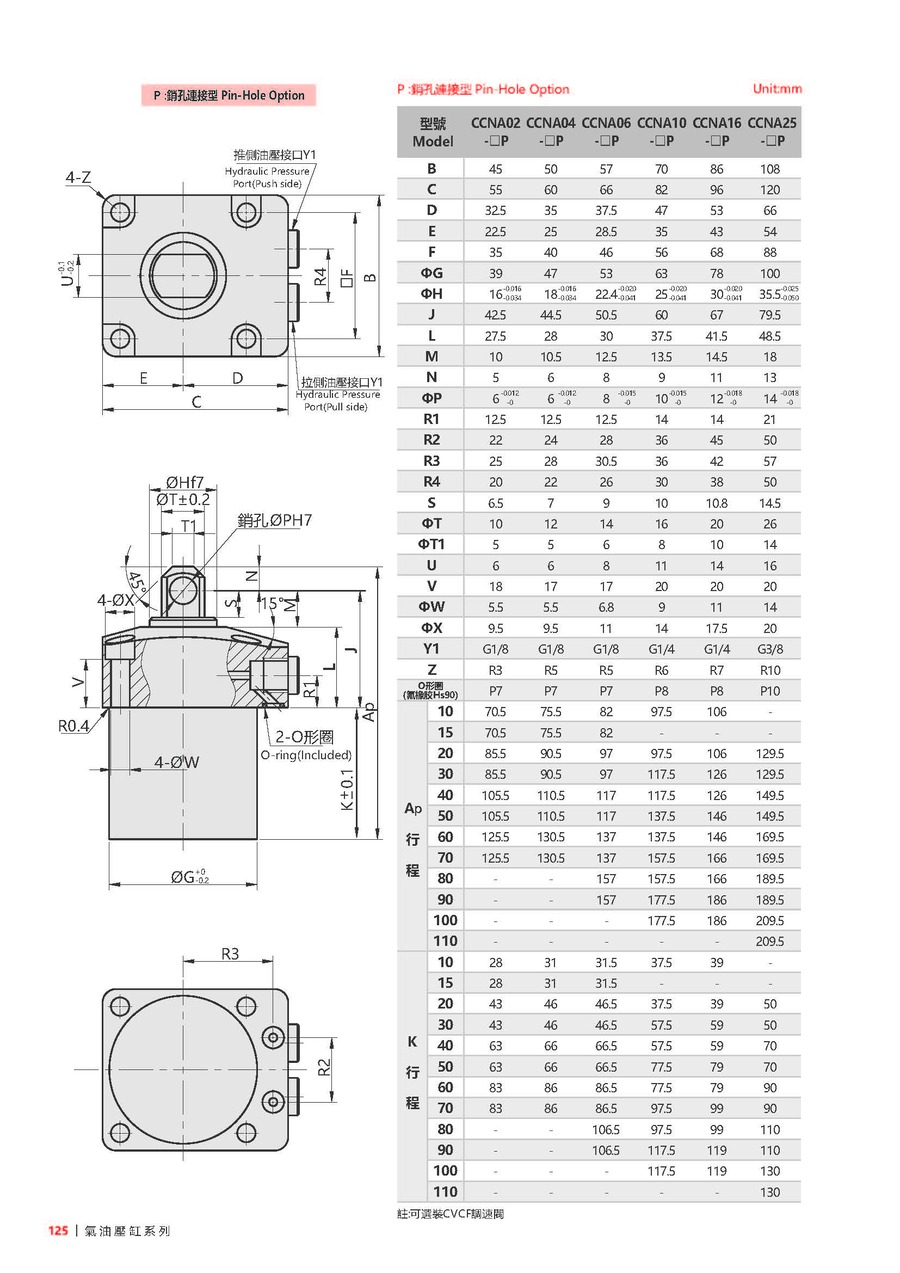

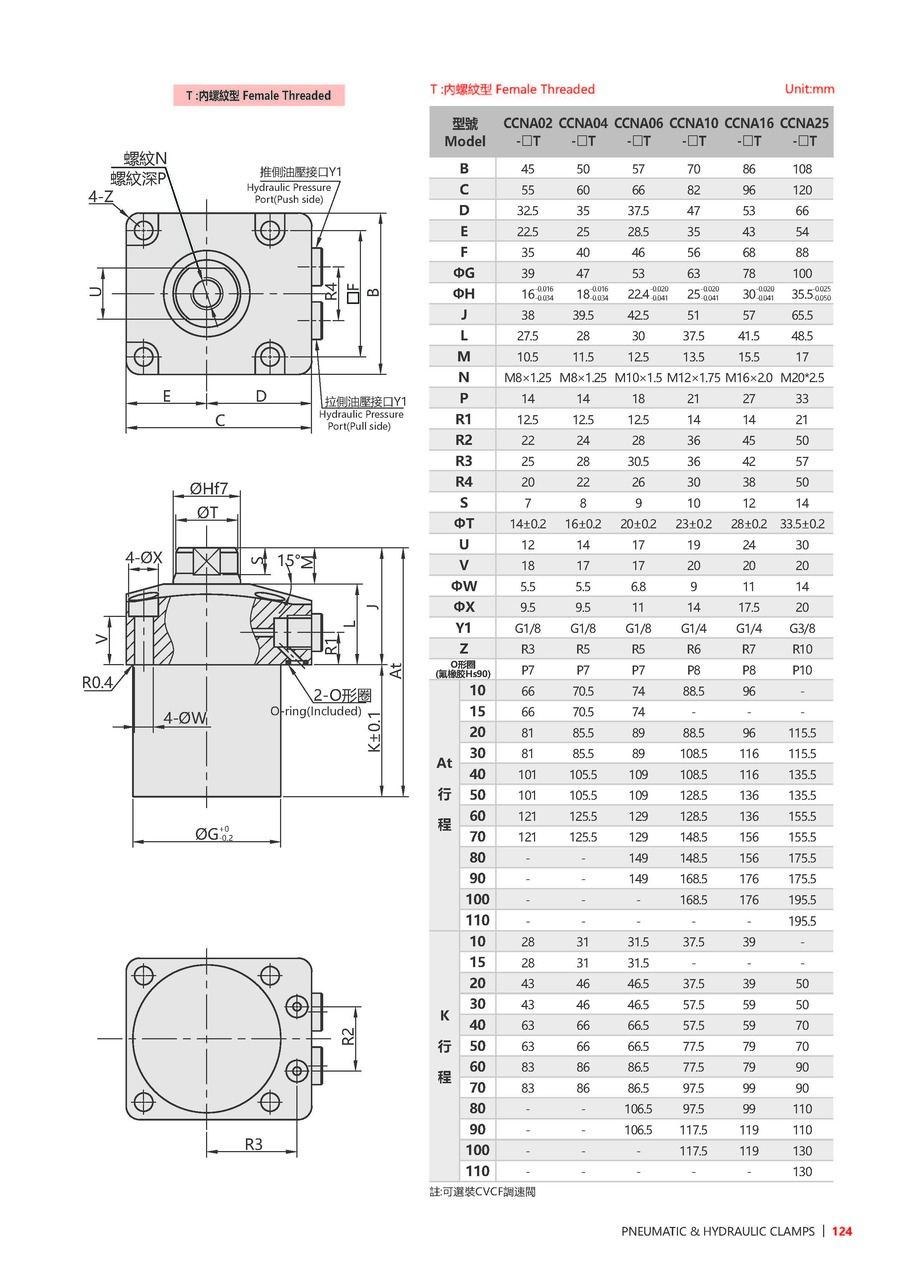

T	Shape of Piston Tip	T: Female Threaded, P: Pin-Hole Option, M: Male Threaded

Información del Producto

Modelo	CCNA02	CCNA04	CCNA06	CCNA10	CCNA16	CCNA25
Cylinder Area Calculation Formula(Push Side)(cm²)	4.9	7.1	9.6	15.2	24.6	38.5
Cylinder Area Calculation Formula(Pull Side)(cm²)	2.9	4.5	5.7	10.3	17.6	28.6
Cylinder Force Calculation Formula(Push Side)(KN)	0.49xP	0.71xP	0.96xP	1.52xP	2.46xP	3.85xP
Cylinder Force Calculation Formula(Pull Side)(KN)	0.29xP	0.45xP	0.57xP	1.03xP	1.76xP	2.86xP
Cylinder Capacity Calculation Formula(Push Side)(cm³)	0.49xS	0.71xS	0.96xS	1.52xS	2.46xS	3.85xS
Cylinder Capacity Calculation Formula(Pull Side)(cm³)	0.29xS	0.45xS	0.57xS	1.03xS	1.76xS	2.86xS
Cylinder Inside Diameter(mm)	Ø25	Ø30	Ø35	Ø44	Ø56	Ø70
Rod Diameter(mm)	Ø16	Ø16	Ø22.4	Ø25	Ø30	Ø35.5
Range of Temperature(°C)	0~+70°C	0~+70°C	0~+70°C	0~+70°C	0~+70°C	0~+70°C
