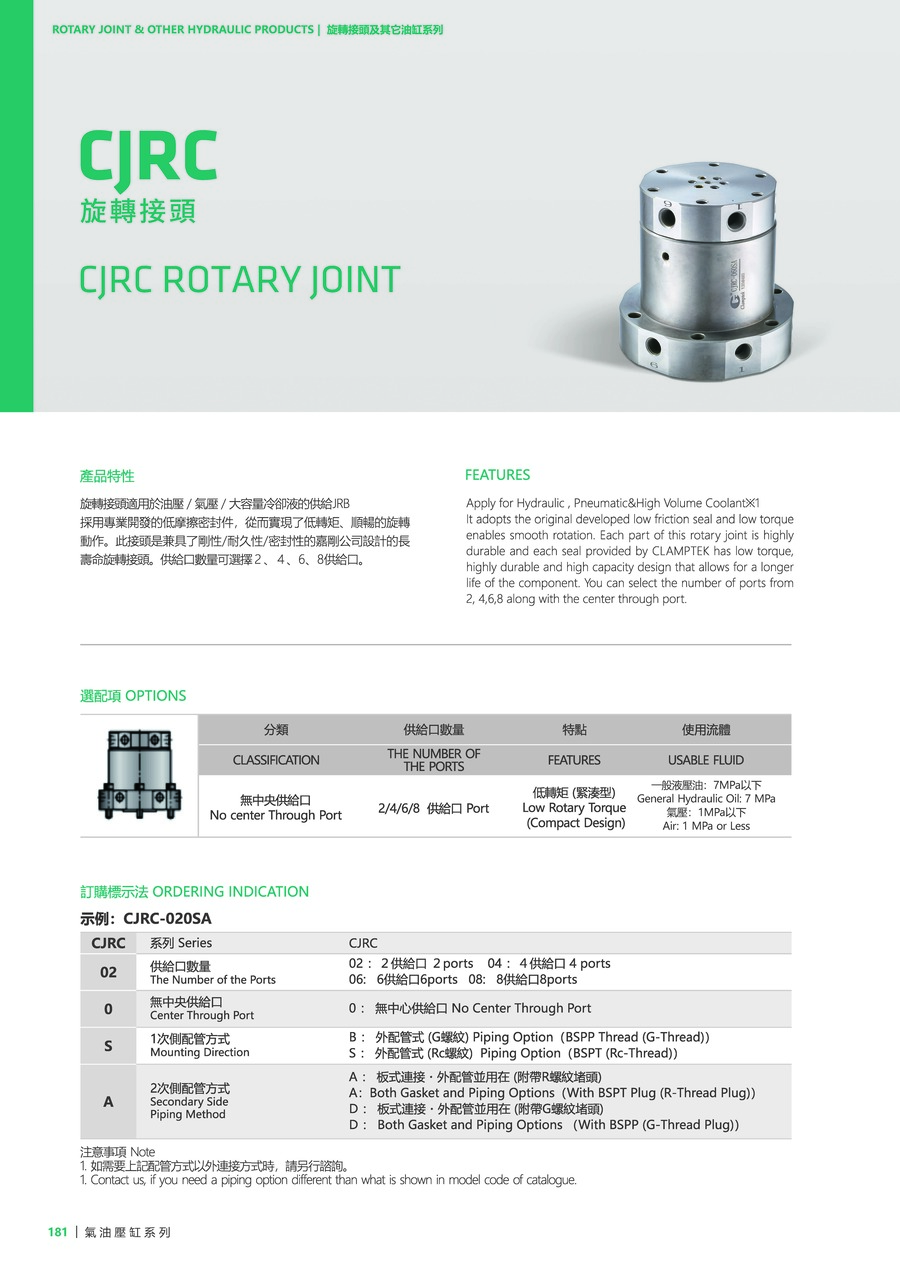

CJRC | ||
---|---|---|
02 |

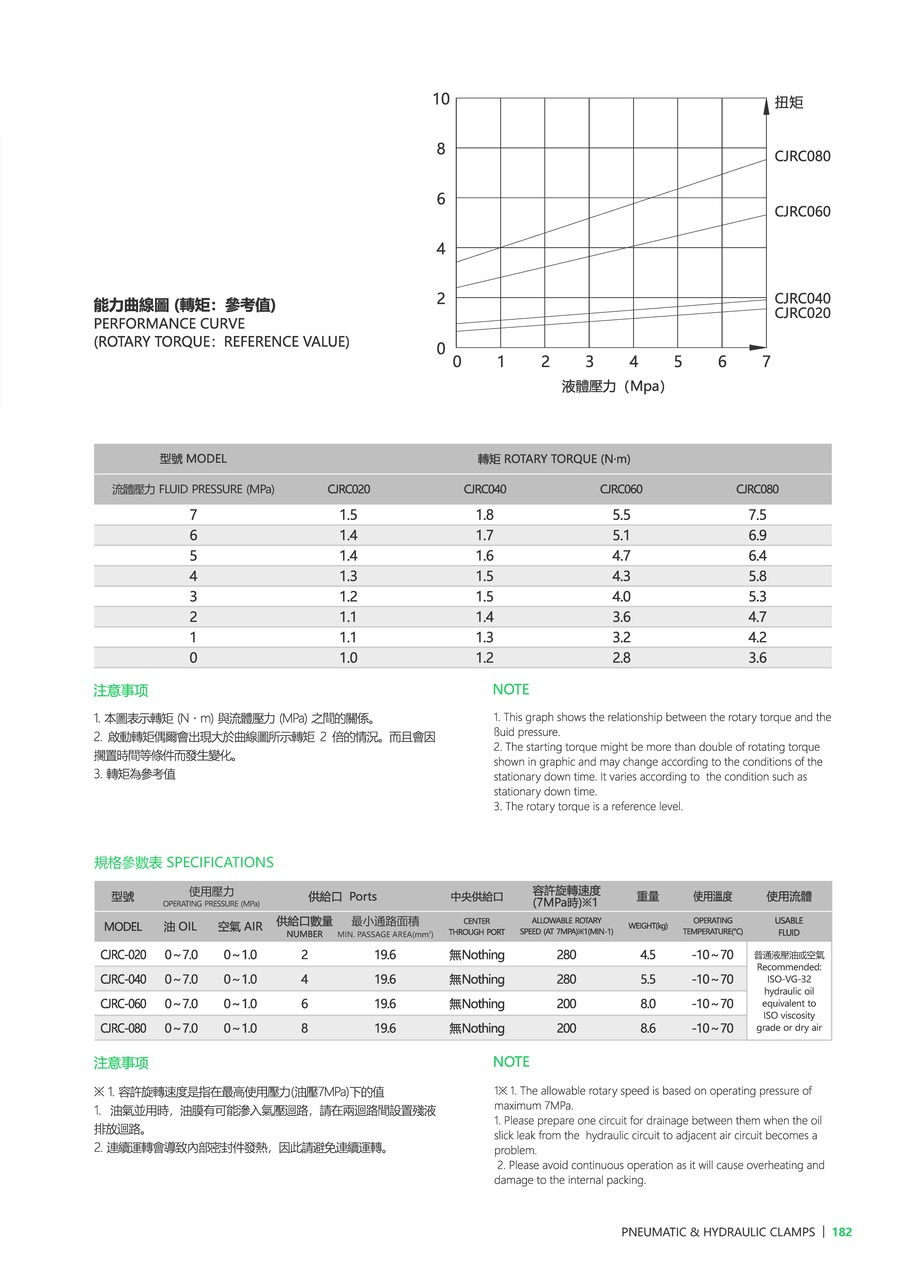

Modelo | CJRC-020 | CJRC-040 | CJRC-060 | CJRC-080 |
---|---|---|---|---|
Presión de Operación-Aceite(Mpa) | 0~7 | 0~7 | 0~7 | 0~7 |
Presión de Operación-Aire(Mpa) | 0~1 | 0~1 | 0~1 | 0~1 |
Número de Ports | 2 | 4 | 6 | 8 |
Area Mín. de Port (mm²) | 19.6 | 19.6 | 19.6 | 19.6 |
Port por Medio del Centro | Nothing | Nothing | Nothing | Nothing |
Velocidad Girada Admisible(en 7MPa) | 280 | 280 | 200 | 200 |
Peso(kg) | 4.5 | 5.5 | 8 | 8.6 |
Temperatura Adecuada(°C) | -10~+70 | -10~+70 | -10~+70 | -10~+70 |
