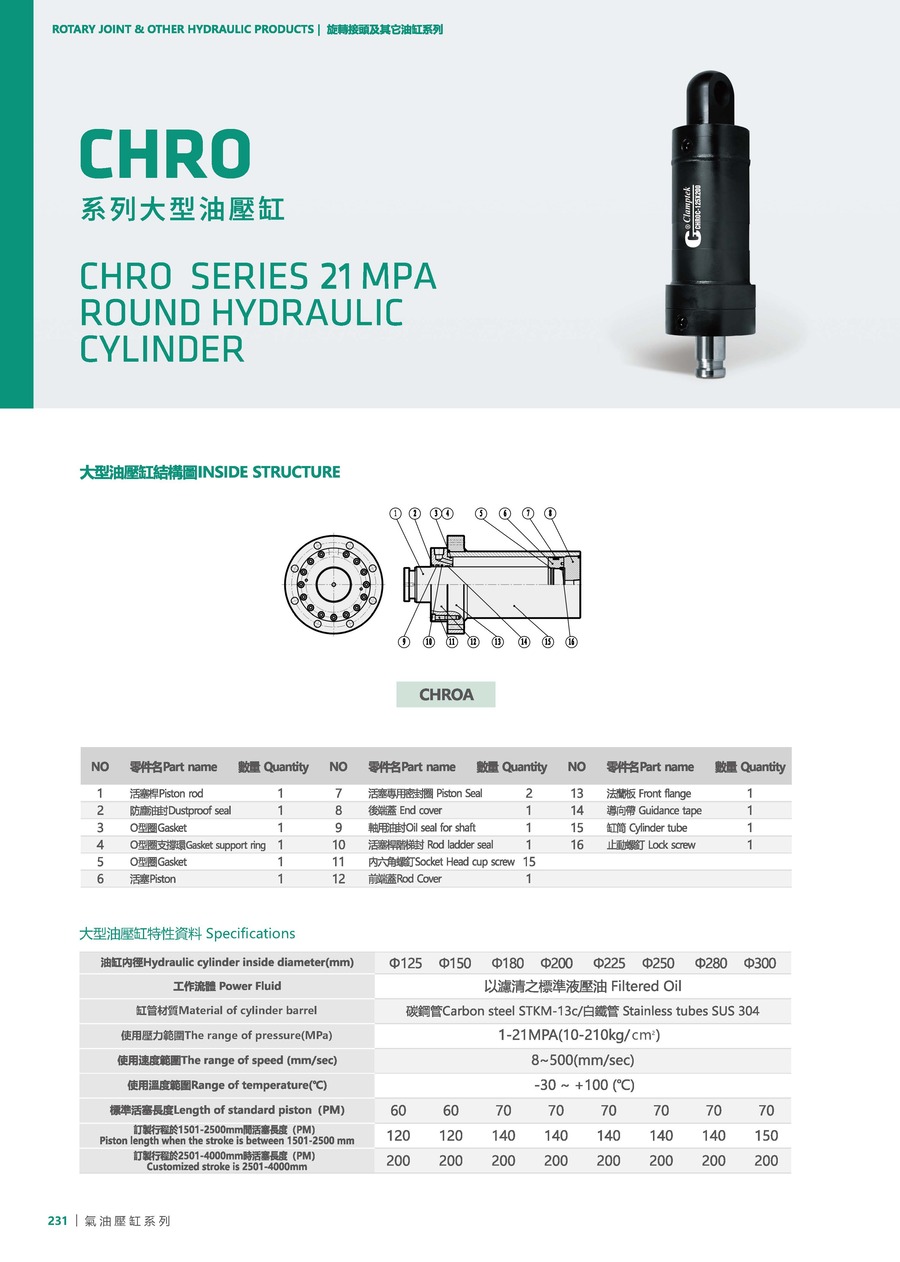

CHRO

Información del Producto

NOTA:
Fluido utilizable: aceite filtro.
Material del cilindro: cuerpo acero al carbano STKM-13C, tubo acero inoxidable SUS 304.

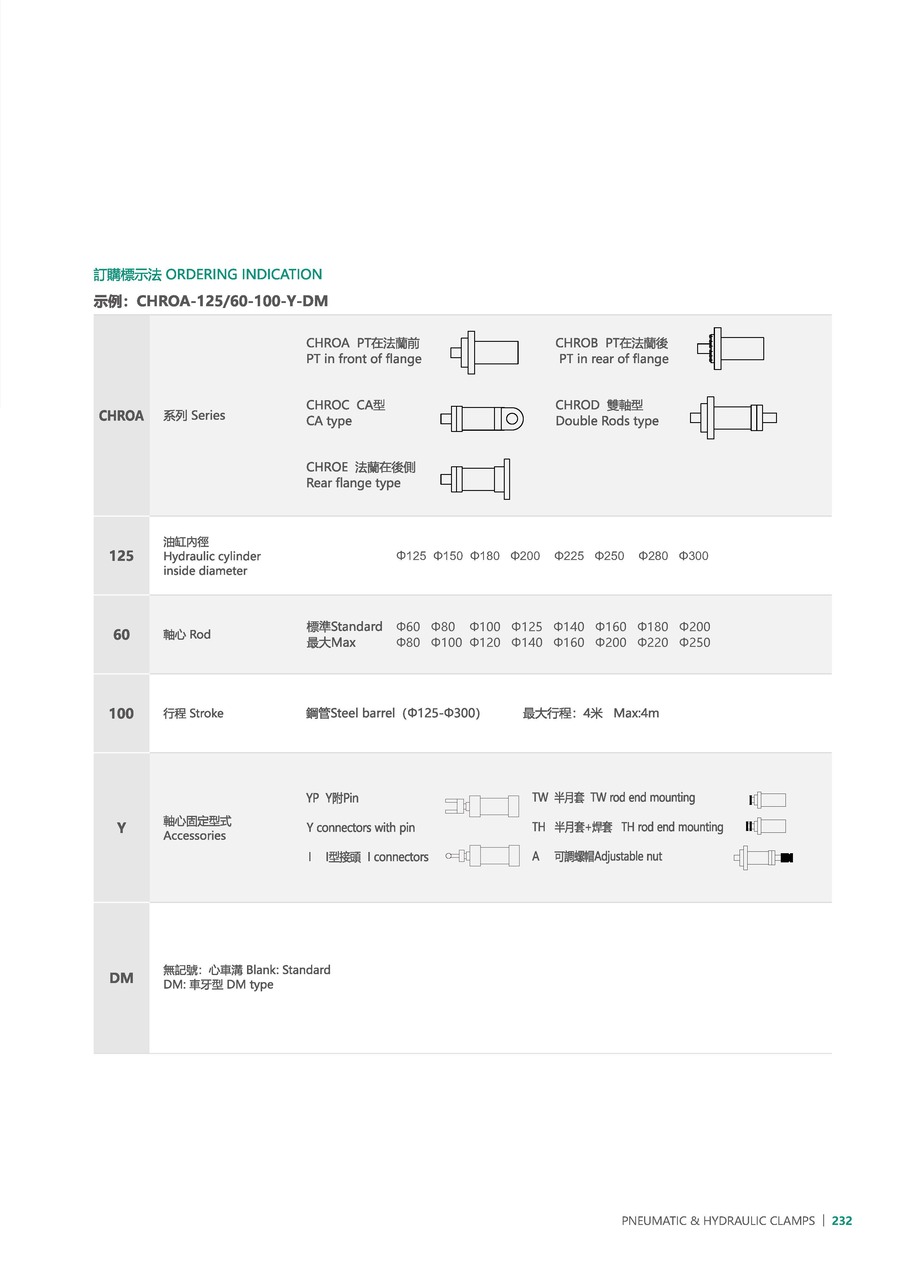

Indicación de Compra

（Ej.CHROA-125/60-100-Y-DM）

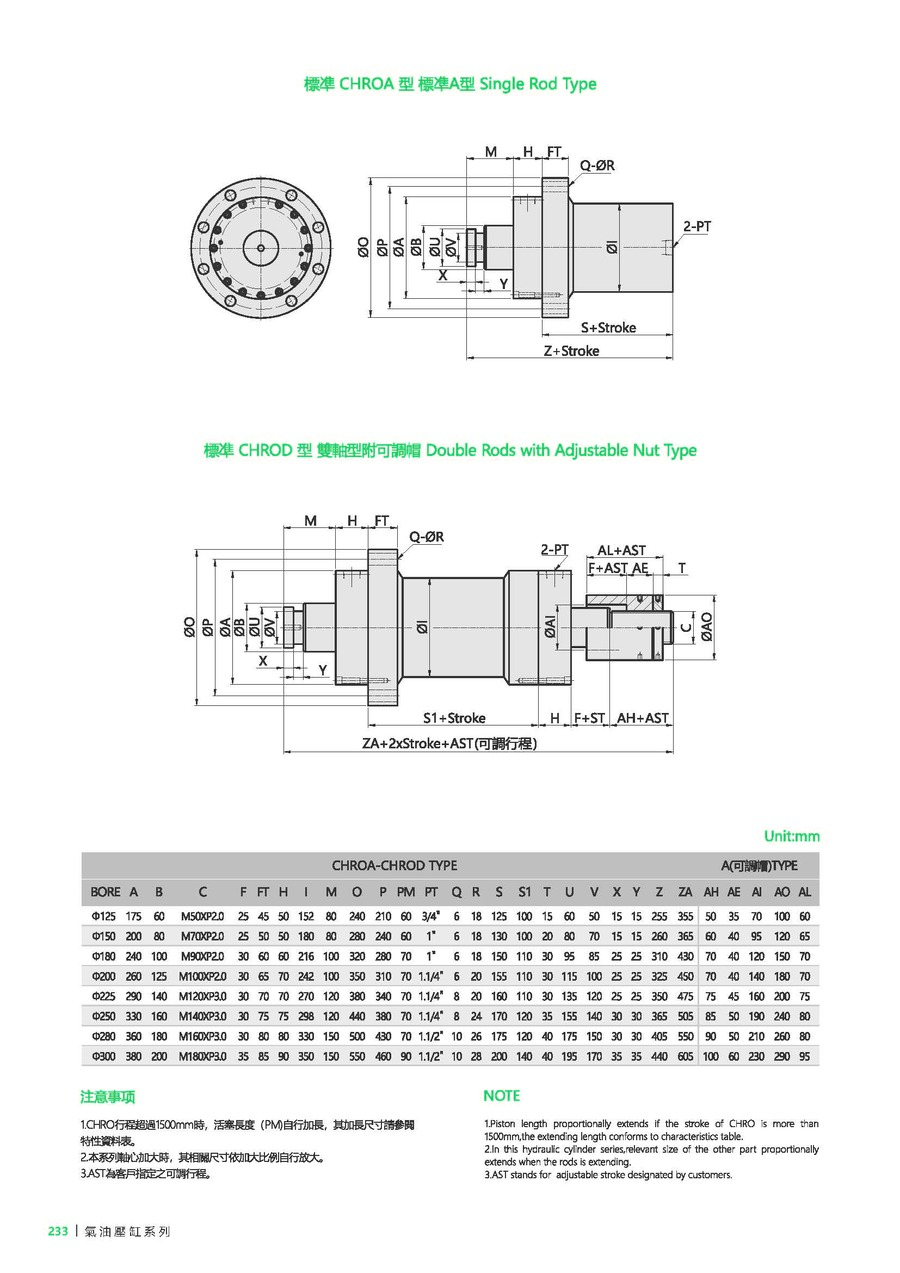

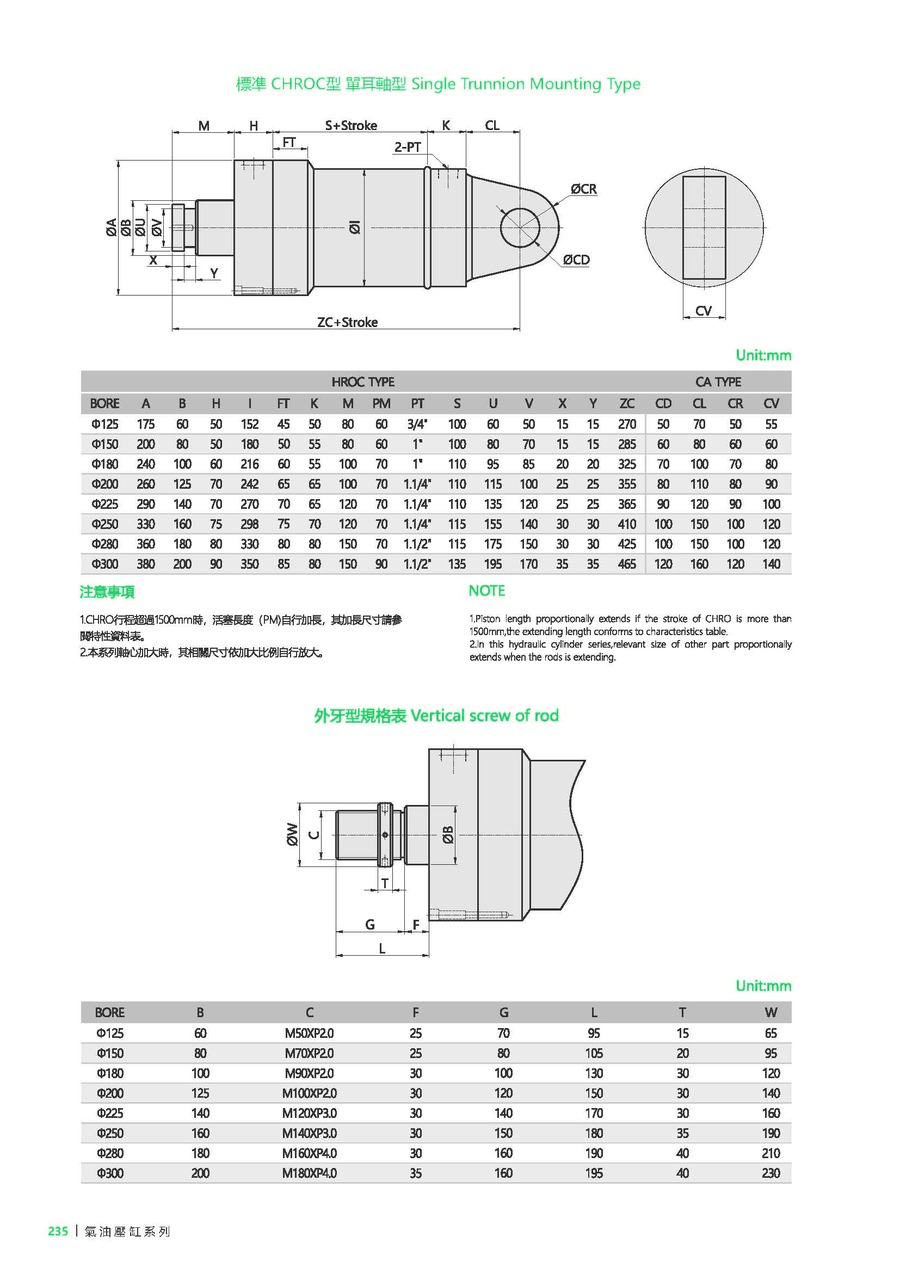

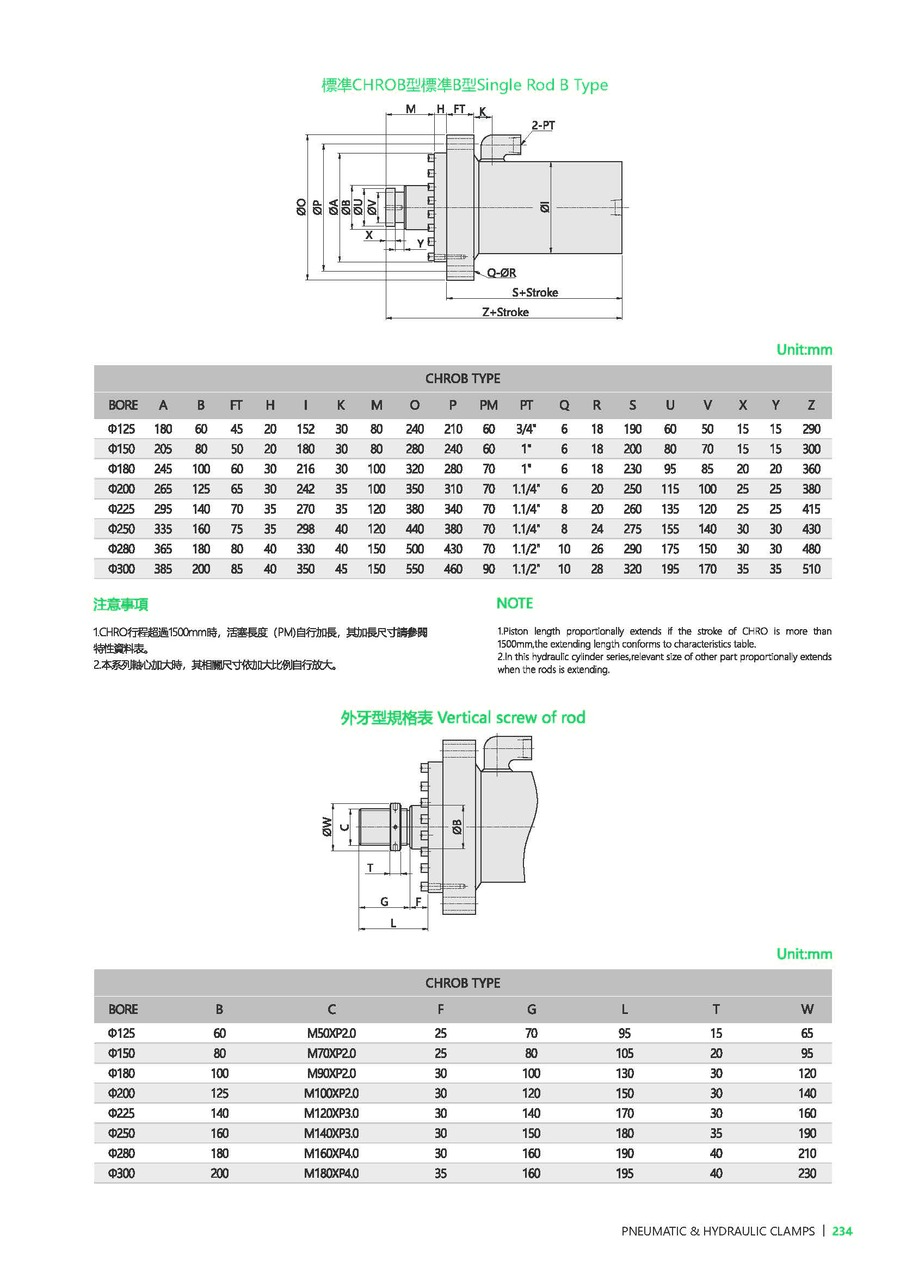

CHROA	Serie	CHROA: PT In Front Of Flange, CHROB: PT In Near Of Flange, CHROC: CA Type, CHROD: Double Rods Type, CHROE: Rear Flange Type
125	Diámetro Interior	Ø125, Ø150, Ø180, Ø200, Ø225, Ø250, Ø280, Ø300
60	Biela	please refer to the detailed data of the PDF below.
100	Stroke	Refíere los detalles en PDF abajo.

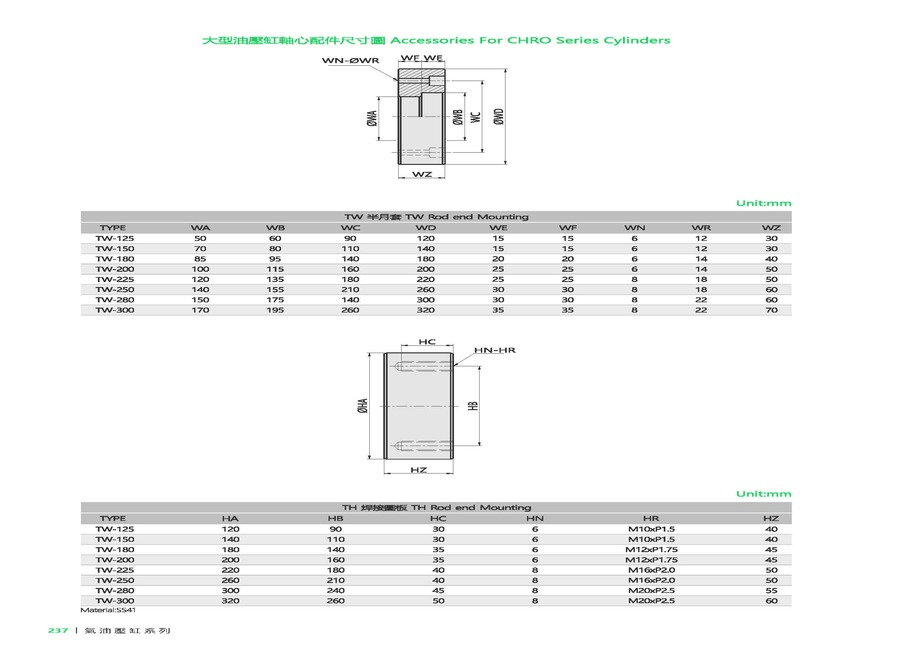

Y	Accesorios de Biela	YP: Y with Pin, I: I Connectors, TW: TW Rod End Mounting, TH: TH Rod End Mounting, A: Adjustable Nut
DM	-	Blank: Standard, DM: DM Type

Información del Producto

Modelo	CHRO-125	CHRO-150	CHRO-180	CHRO-200	CHRO-225	CHRO-250	CHRO-280	CHRO-300
Cylinder Inside Diameter(mm)	Ø125	Ø150	Ø180	Ø200	Ø225	Ø250	Ø280	Ø300
Operating Pressure Range	1-21MPA(10-210kg/cm²)	1-21MPA(10-210kg/cm²)	1-21MPA(10-210kg/cm²)	1-21MPA(10-210kg/cm²)	1-21MPA(10-210kg/cm²)	1-21MPA(10-210kg/cm²)	1-21MPA(10-210kg/cm²)	1-21MPA(10-210kg/cm²)
The Range of Speed(mm/sec)	8-500	8-500	8-500	8-500	8-500	8-500	8-500	8-500
Operating Temperature(°C)	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C	-30~+100°C
Length of Standard Piston(PM)	60	60	70	70	70	70	70	90
Piston Length When The Stroke is Between 1501-2500mm(PM)	120	120	140	140	140	140	140	150
Piston Length When The Stroke is Between 2501-4000mm(PM)	200	200	200	200	200	200	200	200
